Some times before I posted about the underside of the car:
— Seat Leon ST underside
— Installing a Tiguan front exhaust cover
All inspired by this topic:
How to retro-fit skid-trays, aerodynamic under trays and stoneguard to a MK7 golf on GolfMK7.com

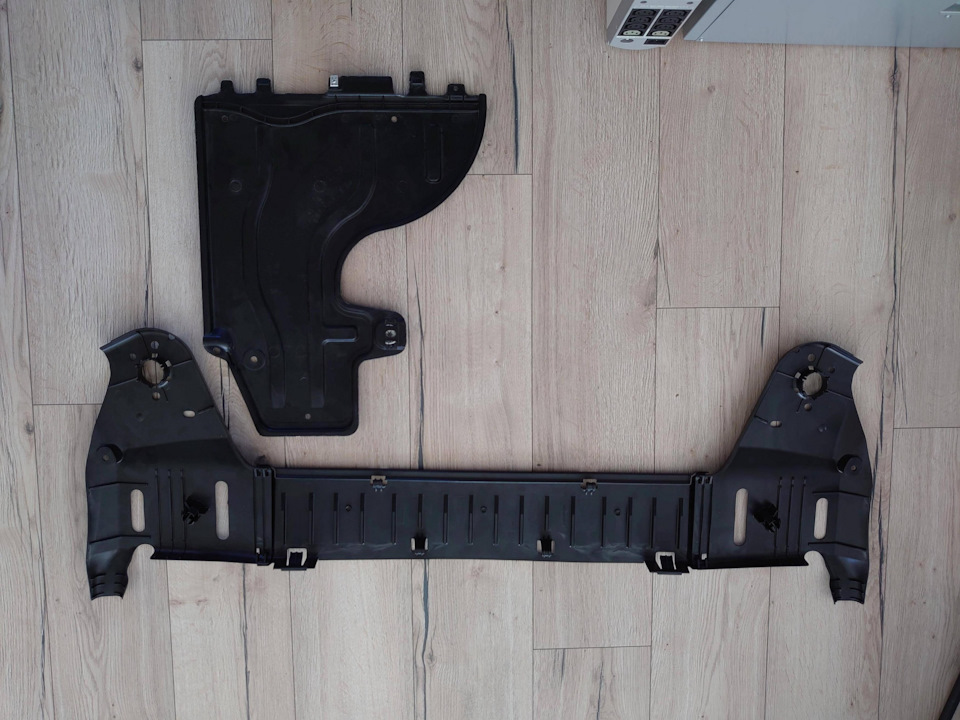

Now I got some additional parts:
— 5WA501715A (Golf 8 rear axle cover)
— 5Q0 501 559 D (Stone chip guard for under side of trailing arm left side for torsionbar suspension)
— 5Q0 501 560 D (Stone chip guard for under side of trailing arm right side for torsionbar suspension)
— 5Q0 825 206 J (Rear exhaust tunnel cover for torsionbar suspension)
— 5Q0 501 561 (Stone chip guard for top side of trailing arm left side)
— 5Q0 501 562 (Stone chip guard for top side of trailing arm right side)

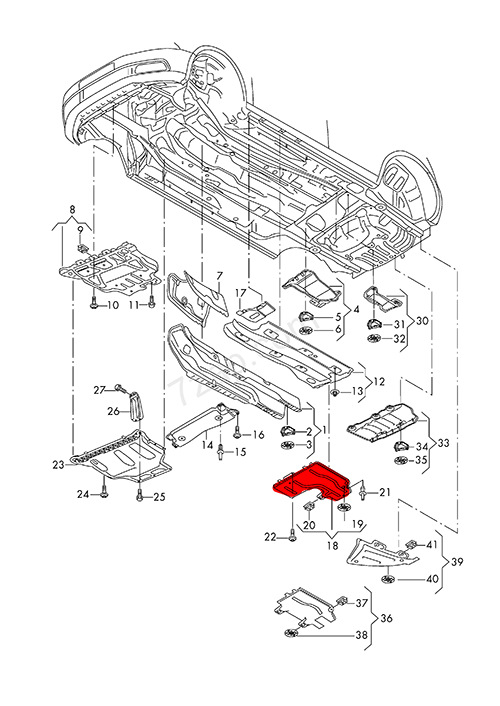

And they are situated in the following places:

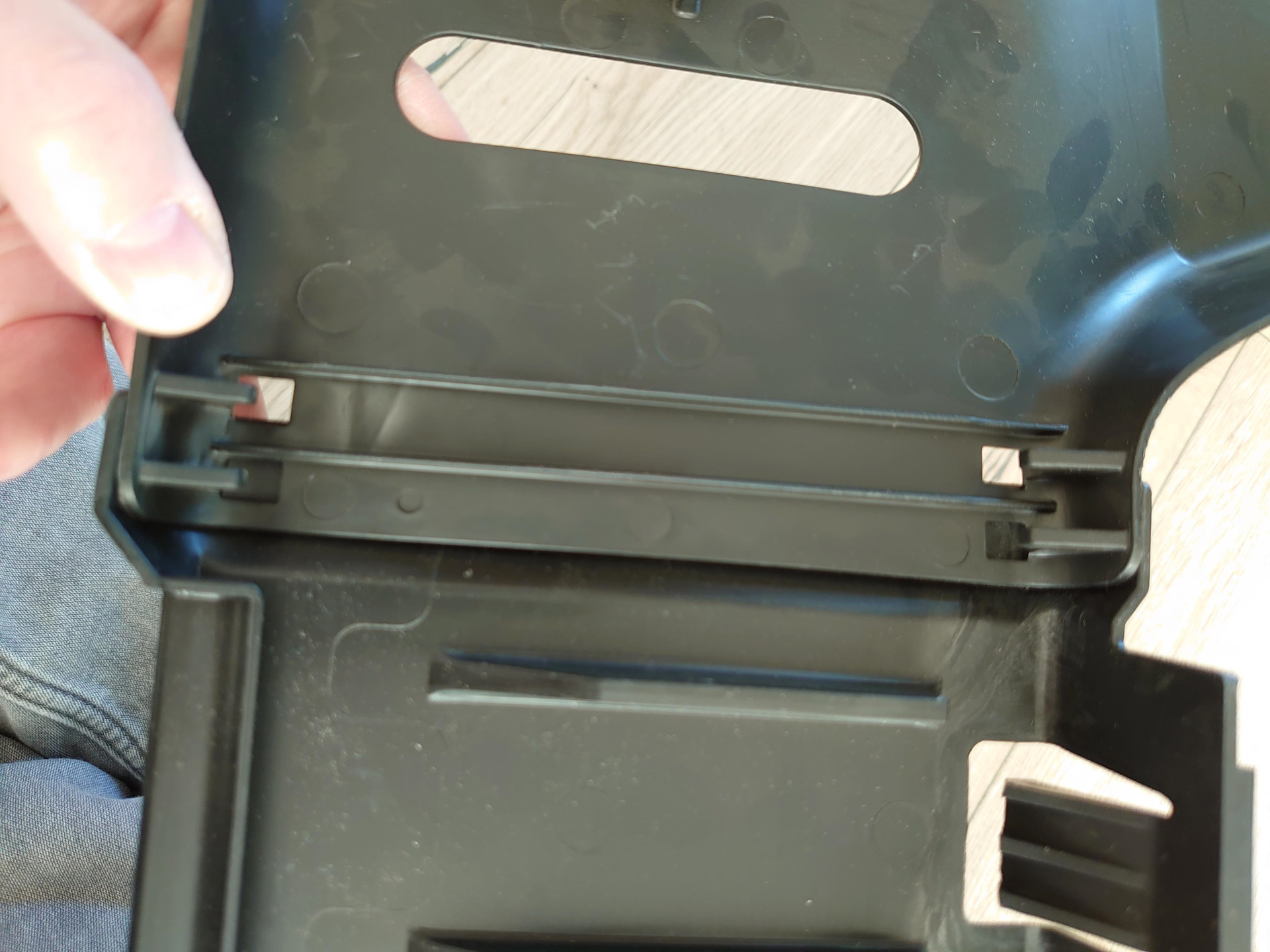

The axle cover is the biggest question mark: will it fit? It sits in b etween the lower trailing arm covers, and it looks like is a perfect match to those.
It should offer some additional underbody protection, as well as noise isolation and streamlining! I'll keep you up to date on the installation!
Comments 3
do you mounted 5Q0 501 561 and 5Q0 501 562 ? I cannot understand where exact they will pass and how I can install it :(
They were already mounted on my car. They're like a cable shelf or so.
do you have some picture with this parts mounted on the rear axle? I try to google it, but nothing find :(
